Product Description
Customized Shopfront Metal Signage 3D Letter Sign Channel Letter Sign Backlit

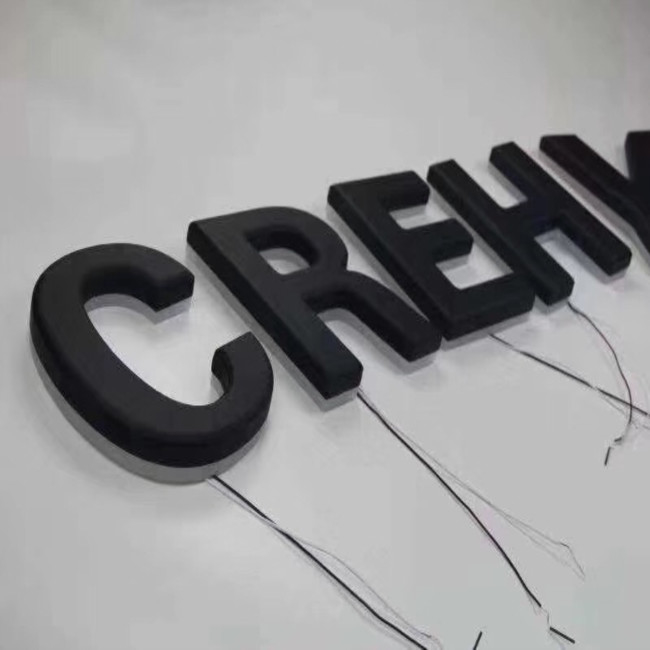

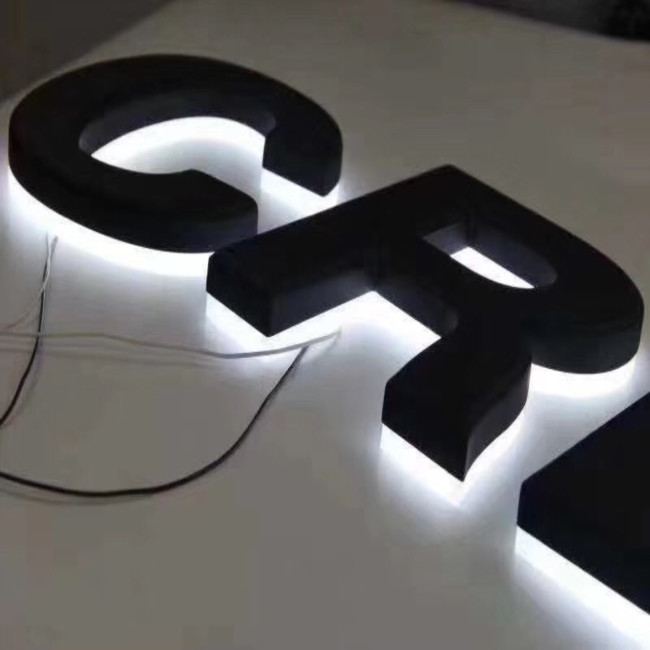

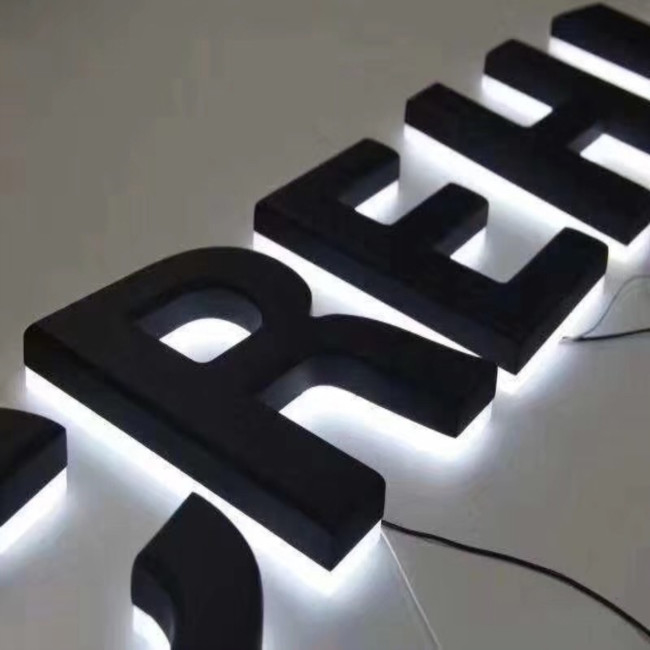

Channel Letter Sign Backlit introduction
Channel letter sign backlit is one of the main type of illuminated 3D letters signs. The sign front face is made of metal cabinet or flat cut acrylic with a color coating in certain pantone code. Back side is useing a 12-20mm acrylic engraved embeded into the cabinet. The acrylic are choosing from sand blast acrylics to help spread lights evenly.
The Led lights for Illuminated sign letters we use normally led strips or led modules which has passed CE, ROHS, UL, which could make sure our led letters maxiumly reduce any maintinence during working. Our led light warranty are 3+ years. and other parts are 5 years more. The power supplies we use are meanwell brand which is world class brand that could provide stable working of lights. All in all, our led letters are nice looking and tough to use.
Spacifications
| Item |
Customized Shopfront Metal Signage 3D Letter Sign Channel Letter Sign Backlit |
| Material |
acrylics |
| Operate Voltage |
Input AC110-130V, 220-230V, 50-60HZ, Output: 12v |
| Size |
Suggest height 10 to 60cm. |
| Optional Color |
White, warm white, yellow, red, orange, purple, green, blue, pink etc. |
| Switch |
upon request |
| Power sockets |
US plug, UK plug, Au plug, JP plug optional. |
| Sign depth |
above 3cm-15cm |
| ODM services |
available |
| Metal finishes |
pantone color, mirror finish or brush finish for gold, silver, black, rose gold, bronze |
Sign Structures
Front part: acrylic
Return: acrylic in 2-2.5cm depth
Back: acrylic
Return Finish: black painted matte or glowing.
Led letters Installation
A fabricated LED letter sign is FLUSH-MOUNTED to a surface with front "access" to a FASTENING DEVICE. But most other led illuminated sign letters and logos are mounted with a very slight stand-off from a mounting surface. This is accomplished with a BLIND MOUNT that hides the fastening hardware. Blind-mount is a specification used where a letter installation "does not have front access" to fasten a letter to a surface. Any letter which requires a stud-mount is usually a blind-mount installation such as a formed plastic letter, flat cut letter, led illuminated sign letters, halo-lit letters etc.
Our Advantages
1. The 3d letter signs we bend and welded from thicker metal board which are tough to use.
2. The components we use are CE, ROHS, UR certificated.
3. All the 3d letter signs are well polished with high-end quality.
4. 3+ years warranty services for our customers.
5. 10-18 days delivery time to your address.
6. Standard exporting carton or Wooden boxes to make sure safe delivery.
RFQ
How can I customize a sign for my store ?
•If you have artwork of your sign, send it to us by email,write down all your detailed requirement as well,such as size, color,font...
We will calculate price according to your requirement. We will also give you some suggestions according to our experience if possible.
How long time i can receive my sign ?
Usually we need 5- 7 days to produce a set of sign. Internal express (DHL / FedEx / UPS / TNT / EMS) will take 3 - 7 days to different countries.
Do you offer free sample for test first?
We need to charge for sample cost, but it can be refundable if you purchase quantity which are large enough.
How to install the sign ?
• If the sign without LED
Use silicon sealant to attach the sign to wall or screw on wall.
• If the sign with LED
Need to make holes for wire connecting from backside, then use silicon sealant to attach the sign to install board is okay.
We offer 1:1 installation paper.
Do you offer guarantee for the products?
Yes, we offer 1 years warranty to our products in wide ranges.
What is your payment terms?
You can pay by bank transfer,Western Union or Paypal.
100% paid before producing or 50% deposit and balance paid before shipping.
My sign will be used in outdoor, are they waterproof?
All the material we used are anti-corrosion and led inside the sign are waterproof.
The power supply we offer for outdoor is IP67.
